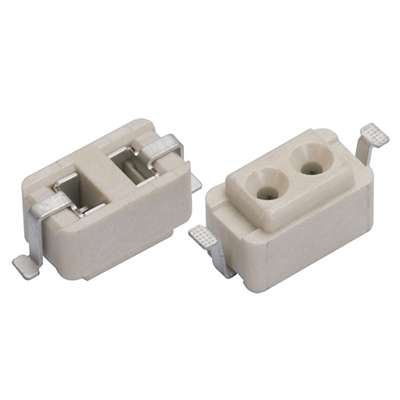

L2503AFV LED灯泡连接器2.5间距

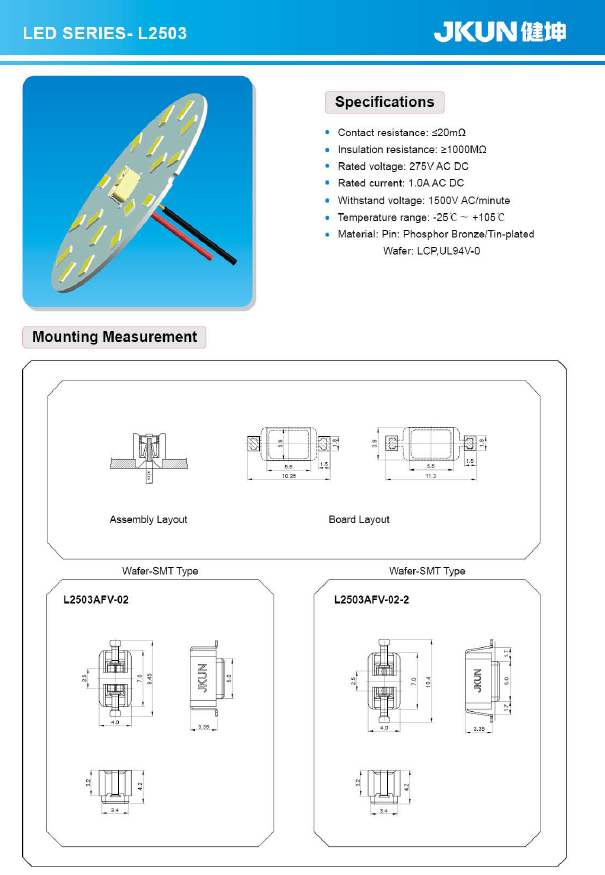

技术参数:

  • Contact resistance: ≤20mΩ

  • Insulation resistance: ≥1 000MΩ

  • Rated voltage: 275V AC DC

  • Rated current: 1.0AAC DC

  • Withstand voltage: 1500V AC/minute

  • Temperature range: -25℃~ + 105℃

  • Material: Pin: Phosphor Bronze/Tin-plated

  • Wafer: LCP,UL94V-O
