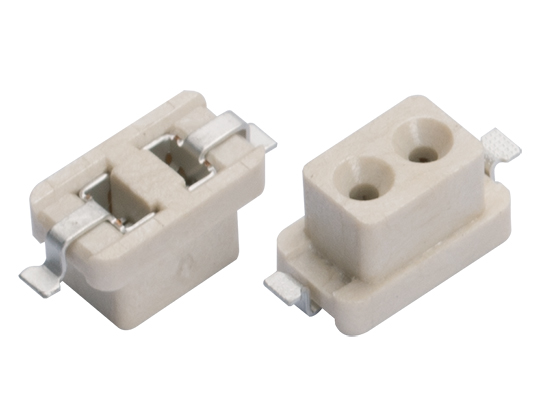

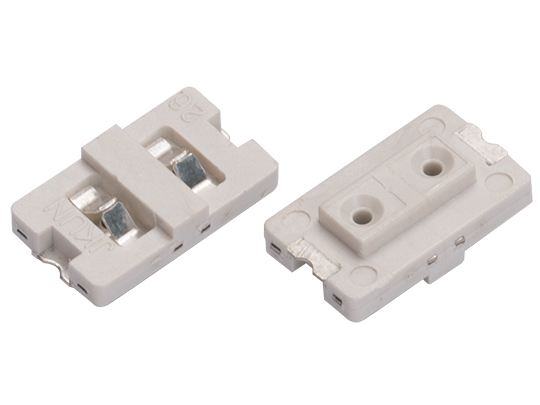

L008 聚光灯连接器

技术参数:

  • Poles:2P

  • Contact resistance:≤20mΩ

  • Insulation resistance:≥800MΩ

  • Rated voltage:125V AC DC

  • Rated current:1.0A AC DC

  • Withstand Voltage:800V AC/minute

  • Temperature Range:-40℃~ +105℃


产品详情

-

技术参数

Pitch:--

Rated voltage:125V AC DC

Poles:2P

Rated current:1.0A AC DC

Contact resistance:≤20mΩ

Withstand Voltage:800V AC/minute

Insulation resistance:≥800MΩ

Temperature Range:-40℃~ +105℃

配套产品

产品应用

资料下载

-

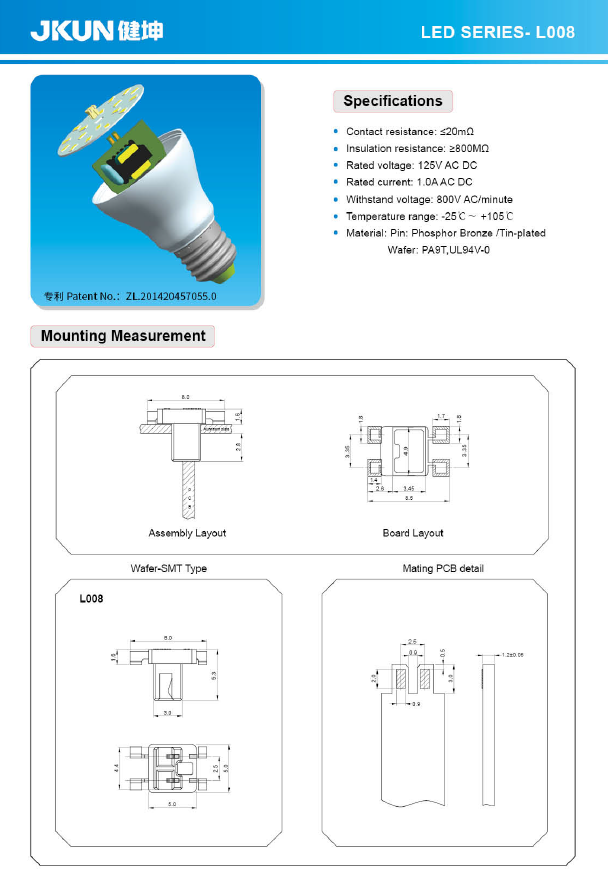

PDF文件

  • L008-02-D2MB1-R
.
